Transmission Parts Explained

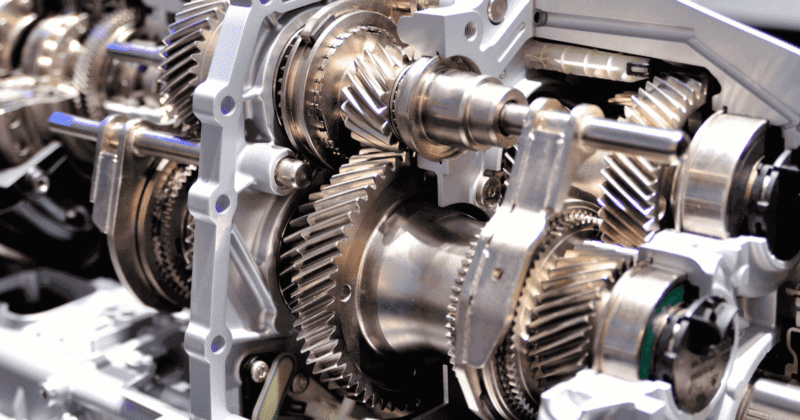

Understanding how your vehicle transfers power from the engine to the wheels begins with its transmission. This complex assembly of gears, shafts, and hydraulic components works tirelessly to adjust torque and speed for efficient driving. From the clutch and torque converter to planetary gear sets and the valve body, each part plays a specific role.

Automatic, manual, and CVT transmissions each utilize these components differently. A solid grasp of transmission parts not only demystifies how your car moves but also helps in diagnosing performance issues and communicating effectively with mechanics when repairs are needed.

Understanding the Core Components of a Transmission System

A vehicle's transmission system is a complex assembly responsible for transferring engine power to the drive wheels while allowing the engine to operate within its optimal RPM range. It achieves this by utilizing a series of gears, shafts, and hydraulic or electronic controls to multiply torque and manage speed.

The primary function is to provide different gear ratios for various driving conditions, from starting from a stop to cruising at high speeds. Without a properly functioning transmission, the engine would either stall or operate inefficiently.

The system typically includes a case to house all components, a torque converter or clutch to connect and disconnect power, and a valve body to direct fluid flow, all working in unison to deliver smooth and reliable performance.

Gears and Gear Sets

Gears are the fundamental mechanical elements that alter the torque and speed output of the transmission. They come in various types, such as spur, helical, and planetary. Planetary gear sets are most common in automatic transmissions because they are compact and strong.

A single planetary set consists of a sun gear in the center, a ring gear on the outside, and carrier-mounted planet gears in between. By holding one of these members stationary, the transmission can achieve different gear ratios.

In manual transmissions, you will find lay shaft gears and synchronizers that allow the driver to mechanically select the desired ratio, directly engaging the rotating collars to lock the gear to the output shaft.

The Torque Converter and Clutch System

The torque converter in an automatic transmission acts as a fluid coupling between the engine and the transmission. It uses transmission fluid and a set of vanes (pump, turbine, and stator) to multiply engine torque and allow the vehicle to idle while stopped.

Inside, a lock-up clutch engages at higher speeds to eliminate slip and improve fuel economy. Conversely, a manual transmission uses a clutch disc and pressure plate system. The driver presses the clutch pedal to separate the engine from the transmission, allowing gear changes. The friction material on the clutch disc wears over time and must be replaced for proper engagement, which is why smooth operation is key for longevity.

Valve Body and Hydraulic Controls

The valve body is the brain of an automatic transmission, directing pressurized fluid to engage the correct clutches and bands. It contains a complex network of passages, valves, and solenoids that respond to throttle position and vehicle speed. Shift solenoids are electronically controlled to open and close fluid paths, determining when the transmission shifts gears.

Modern valve bodies are highly precise, allowing for smooth and quick gear changes. The hydraulic pressure generated by the oil pump flows through the valve body, and any blockage or solenoid failure can lead to harsh shifting or slipping. Regular fluid changes help keep the valve body free of debris and ensure correct hydraulic operation.

Component	Function	Key Maintenance Tip
Planetary Gear Set	Provides multiple gear ratios automatically	Use correct fluid viscosity
Torque Converter	Transmits and multiplies engine torque via fluid	Check for shudder or overheating
Valve Body	Directs hydraulic pressure for gear engagement	Change transmission fluid regularly
Shift Solenoids	Electronically control fluid flow for shifts	Diagnose with a scanner for faults
Clutch Disc (Manual)	Engages and disengages engine from transmission	Avoid riding the clutch pedal

Understanding the Core Components of Transmission Parts

Clutch as a Mechanical Coupling Device

The clutch serves as the primary link between the engine and the gearbox, allowing for smooth engagement and disengagement of power. When the driver presses the clutch pedal, it temporarily separates the engine from the transmission, enabling gear changes without damaging components.

This system is critical for starting from a stop and shifting gears. The following are key aspects of the clutch function.

1. The clutch plate uses friction material to grip the flywheel, transmitting torque to the input shaft of the gearbox.
2. A pressure applies a constant force to maintain contact, while release mechanisms (such as levers or hydraulic cylinders) disengage it when needed.
3. In manual transmissions, the driver controls the clutch, whereas automatic systems use a torque converter or dual-clutch mechanism for similar purposes.

Role of the Gearbox in Power and Torque Management

Gearbox as a Speed and Torque Converter

The gearbox, also called the transmission, adjusts the engine output to match driving conditions, providing different gear ratios for acceleration, cruising, and reverse motion.

It contains multiple gearsets that alter the speed and torque delivered to the wheels. This component ensures the engine operates within an efficient RPM range. Listed below are core elements of the gearbox.

1. Manual gearboxes use a set of meshing gears selected by the driver via a shift lever and synchronizers to match gear speeds.
2. Automatic gearboxes employ a planetary gearset controlled by hydraulic systems or electronic actuators to shift ratios without driver input.
3. Continuously variable transmissions (CVTs) use belts and pulleys to provide an infinite range of ratios for seamless power delivery.

Function of the Driveshaft, Differential, and Axles in Power Distribution

Driveshaft Transmission and Differential Diferential

The driveshaft transfers rotational power from the gearbox to the differential, which then splits it between the axles to drive the wheels. This system also allows the left and right wheels to rotate at different speeds, which is essential for cornering.

The axles carry the final torque to the wheel hubs. Important points are detailed below.

1. The driveshaft is a rotating shaft that connects the gearbox output to the differential, often featuring universal joints to accommodate suspension movement.
2. The differential contains a set of gears, such as ring and pinion, that reduce speed and distribute torque to the two half-axles.
3. Solid or independent axles manage wheel loads and maintain tire alignment while transmitting power to the ground.

What is the most common cause of transmission failure?

The most common cause of transmission failure is low or degraded transmission fluid. This issue leads to inadequate lubrication, overheating, and hydraulic pressure loss, which can damage gears, clutches, and seals over time. Without proper fluid levels and quality, components wear prematurely, resulting in slipping, hard shifting, or complete transmission breakdown.

Common Signs of Low or Degraded Transmission Fluid

Indicators you should not ignore

Detecting low or degraded fluid early can prevent major transmission failure. Symptoms often include unusual noises, delayed engagement, and fluid leaks under the vehicle. Routine checks help identify problems before they escalate.

1. Burning smell from the transmission area, often caused by overheated fluid.
2. Delayed or harsh shifting between gears, especially from park to drive.
3. Visible puddles of red or brown fluid under the car near the transmission pan.

How Low Fluid Levels Cause Mechanical Damage

Impact on internal components

Transmission fluid serves as both a lubricant and a hydraulic medium. When levels drop, metal parts grind against each other, generating friction and heat. This can warp gears, burn clutch plates, and clog the valve body with debris.

1. Increased friction leads to scoring on gear teeth and bearing surfaces.
2. Insufficient hydraulic pressure causes clutches to slip and overheat.
3. Debris from worn parts circulates in the fluid, accelerating overall wear.

Preventive Measures to Avoid Transmission Failure

Steps to maintain fluid health

Regular maintenance is key to extending transmission life. Simple habits like checking fluid levels monthly and following manufacturer service intervals reduce the risk of failure. Quality replacement fluid also matters for long-term performance.

1. Check transmission fluid level at least once a month using the dipstick.
2. Replace fluid and filter according to your vehicle owner manual, typically every 30,000 to 60,000 miles.
3. Inspect for leaks around seals, pan gaskets, and cooler lines regularly.

Frequently Asked Questions

What is a Transmission and Why is it Important?

A transmission is the gearbox that transfers power from the engine to the wheels. It adjusts torque and speed, allowing the vehicle to move efficiently at different speeds. Without it, the engine would either stall or over-rev. Modern transmissions enhance fuel economy, provide smoother acceleration, and enable the driver to control forward or reverse motion effectively.

What Are the Differences Between Manual and Automatic Transmissions?

A manual transmission requires the driver to manually shift gears using a clutch pedal and gear stick, offering more control. An automatic transmission shifts gears automatically based on speed and load, using a torque converter or dual-clutch system. Manuals are often more fuel-efficient and cheaper to repair, while automatics provide easier driving, especially in traffic.

What are Key Components Inside a Transmission System?

Key parts include gears, shafts, clutches, synchronizers, bearings, and seals. Gears change speed ratios; clutches engage or disengage power flow; synchronizers match gear speeds for smooth shifting. Automatic transmissions add a torque converter, planetary gear sets, and valve bodies. Also essential are the transmission fluid, filter, and cooler to lubricate and maintain temperature.

How Can You Tell if Your Transmission Needs Repair?

Common signs include slipping gears, delayed engagement, grinding noises when shifting, leaking fluid, burning smells, or a warning light. You might also notice vibrations, rough shifts, or difficulty moving. Worn clutches, low fluid, or failing solenoids are typical culprits. Regular fluid changes help, but if symptoms persist, a professional inspection is necessary to prevent total failure.
